Adjustable Channel Mount with 2-5/16" Ball & Pintle (2" Shank, 13,000 Lbs.)

In stock
Product Details
UPC: 612314459070
Brand: CURT
  • Mounts on trailer hitches with a 2" x 2" receiver tube opening
  • Adjustable channel mount allows for precise trailer leveling
  • Shank can be flipped for a max rise of 5-1/4" and drop of 6"
  • Fits 2-5/16" couplers or lunette eyes with a 2-1/2" or 3" inside diameter
  • Spring-loaded locking arm for secure coupling
  • Two hitch pin holes provide shank lengths of 11" or 12"
  • Built-in anti-rattle helps promote quiet towing
  • Protected by a highly durable carbide powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)


  • Includes ball & pintle combination #45920, adjustable shank #45910 and pins & clips
  • Patent# US8,033,563


Maximum Rise: 5-1/4 IN
Maximum Drop: 6 IN
Receiver Tube Size: 2-1/2 IN
Gross Trailer Weight(GTW): 20,000 LB
Ball Diameter: 2 IN or 2-5/16 IN
Shank Length: 11 IN or 12 IN
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Shipping Weight: 38.000
Part Type: Adjustable Channel Mount
Ball 1 Diameter and Capacity: 2 IN - 10,000 LB
Ball 2 Diameter and Capacity: 2-5/16 IN - 20,000 LB

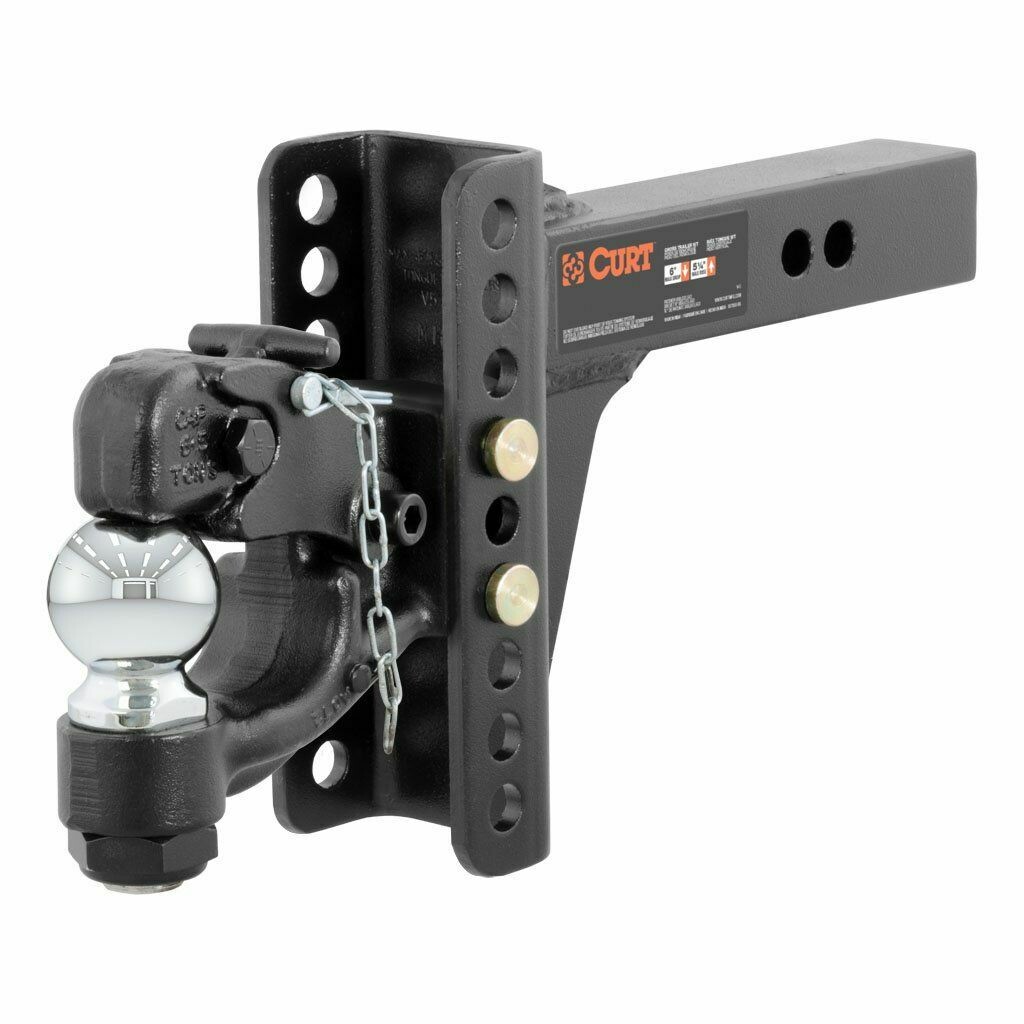

What if there was a hitch ball mount that eliminated the need for all other ball mounts? Whichever trailer you wanted to tow, this universal ball mount could be adapted to fit the job. Imagine never having to buy another ball mount for your hitch ever again. Sound too good to be true? With the CURT adjustable channel mount, that's exactly what you get.

The adjustable channel mount is a highly versatile hitch ball mount option. It features a standard receiver hitch shank, a multi-level channel and a standardized trailer ball attachment, allowing you to easily tow various types of trailer without requiring you to keep an arsenal of ball mounts on hand. It also features a highly durable construction built to withstand the elements, and built-in anti-rattle features for smooth, quiet towing.

The ball and pintle combination head of this channel mount offers versatile towing options. It features a standard 2-5/16" diameter trailer ball to fit any 2-2/16" trailer coupler. With its integrated spring-loaded arm, the ball-pintle combination can also be coupled to a 2-1/2" or 3" lunette ring (inside diameter). The entire head securely attaches to the adjustable shank using the included hitch pins and clips, and these hitch pins can also be replaced with the hitch lock set #23556 for additional security.

This adjustable channel mount comes with a 2" shank to fit any 2" x 2" receiver hitch. The shank has two hitch pin holes to adjust the length of the ball mount from 11" to 12". This provides extra clearance, as needed, for the rear bumper, a spare tire or other obstructions.

The channel mount is set with a series of vertical holes to mount the included pintle hook and trailer ball combination. The holes are spaced 1" apart, allowing the ball mount to perfectly suit the trailer for smooth, stable towing. This channel mount offers a maximum drop of 6", and it can also flipped for a maximum rise of 5-1/4".

For safety you can be confident in, each CURT adjustable channel mount design undergoes strict testing procedures. This model is constructed from high-strength forged steel and rated for a maximum gross trailer weight capacity of 13,000 lbs. This makes it an excellent choice for livestock haulers, large flatbed trailers, deluxe travel trailers and much more (never exceed the weight ratings of the lowest-rated towing component).

CURT adjustable channel ball mounts are not only built for tough jobs, but they are also engineered to offer smooth, quiet towing. Built into the adjustable shank is an anti-rattle mechanism -- a rubber bumper that goes between the shank channel and the trailer ball attachment. This anti-rattle bumper greatly reduces vibrations and noise coming from the coupling point, providing a smoother, quieter ride for the road ahead.

In the world of heavy-duty towing, harsh conditions and relentless exposure to the elements aren't uncommon. For this reason, the adjustable channel mount is finished with a highly durable carbide black powder coat finish. This helps withstand rain, snow, dirt and road salt, protecting the shank from rust and corrosion. The ball of the pintle hook is given a chrome-plated finish for additional rust resistance.
